Device Info

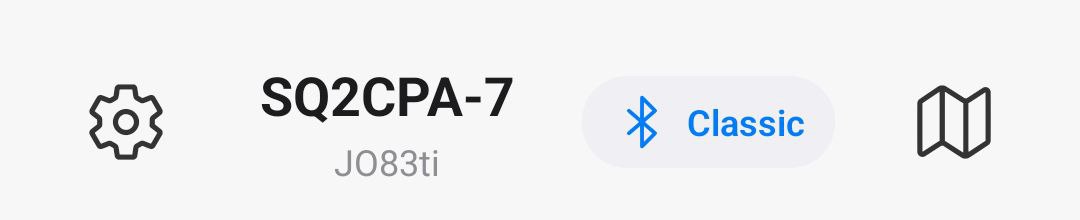

The Device Info screen provides detailed information and remote-control actions for your connected TNC. You can access this screen by tapping on your callsign in the Top Status bar on the Main Screen.
Firmware Requirement: Please note that this functionality is only available for devices running the official
SQ2CPAfirmware, which can be obtained from flasher.lora-aprs.pl. It will not work with other firmwares.
This screen provides information about your device, divided into the following sections:

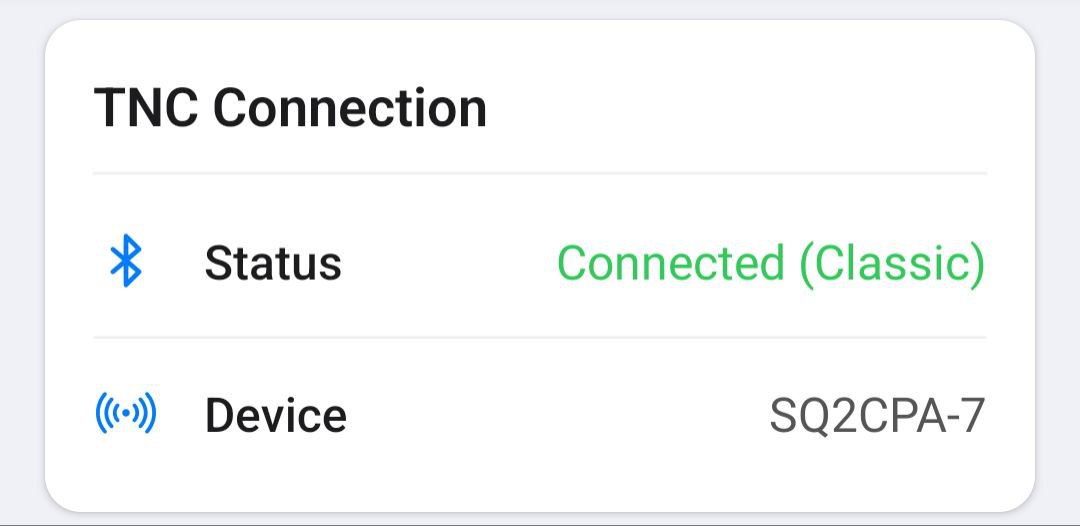

TNC Connection
This section shows the live status of your connection to the TNC.
- Connection Status: Confirms that you are actively connected.
- Connection Type: Shows the protocol being used (Classic, BLE, TCPIP).

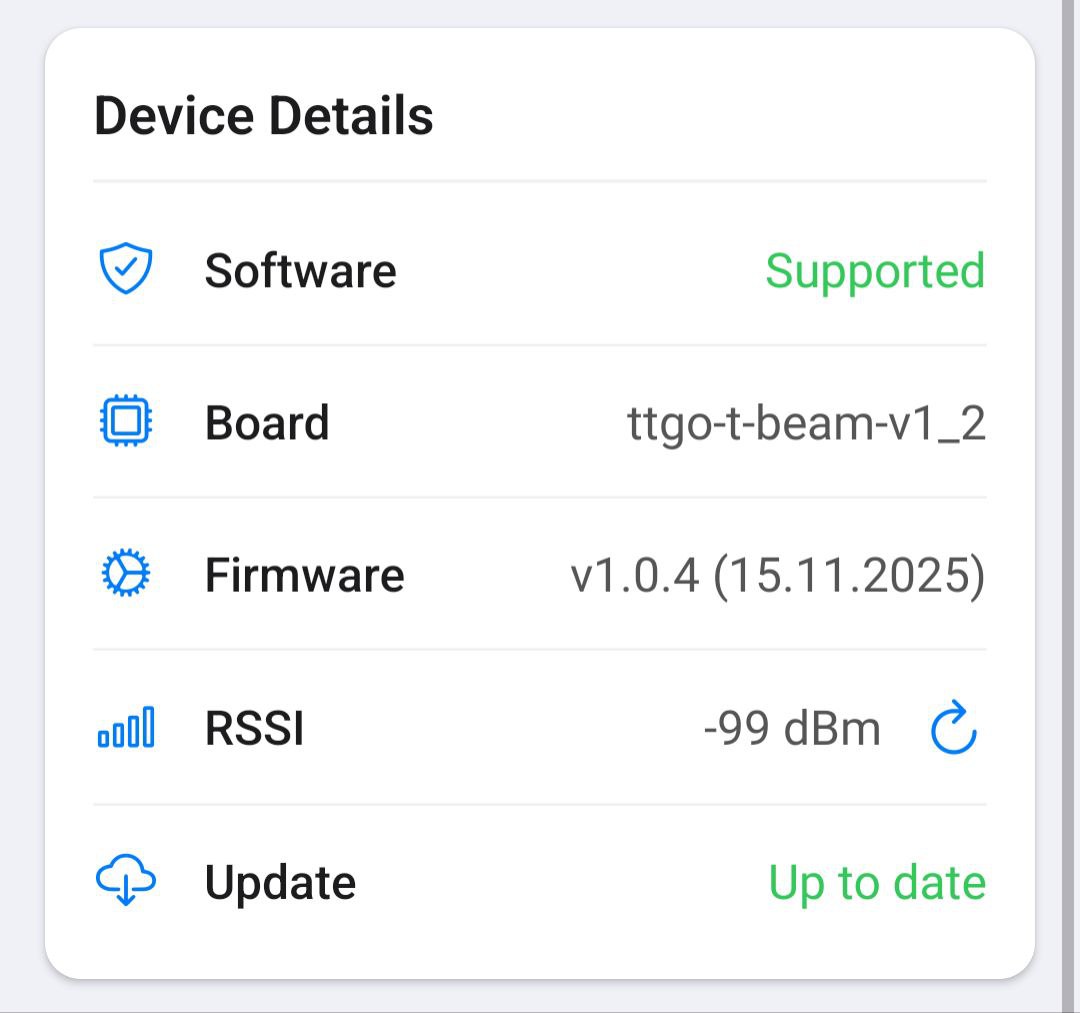

Device Details
This area pulls specific hardware and software information directly from your device.
- Supported Software: Confirms if the app recognizes this as a supported
SQ2CPAfirmware. - Board: The exact environment name of your hardware (e.g.,
heltec_v3,t-beam). - Software Version: The current firmware version installed on the device.
- Background RSSI: Shows the current background RF noise level on the frequency. This is very useful for checking for QRM (Interference). It includes a Refresh button to take a new reading.
- New Version Available: The app will check and inform you if a newer firmware version is available from the flasher.

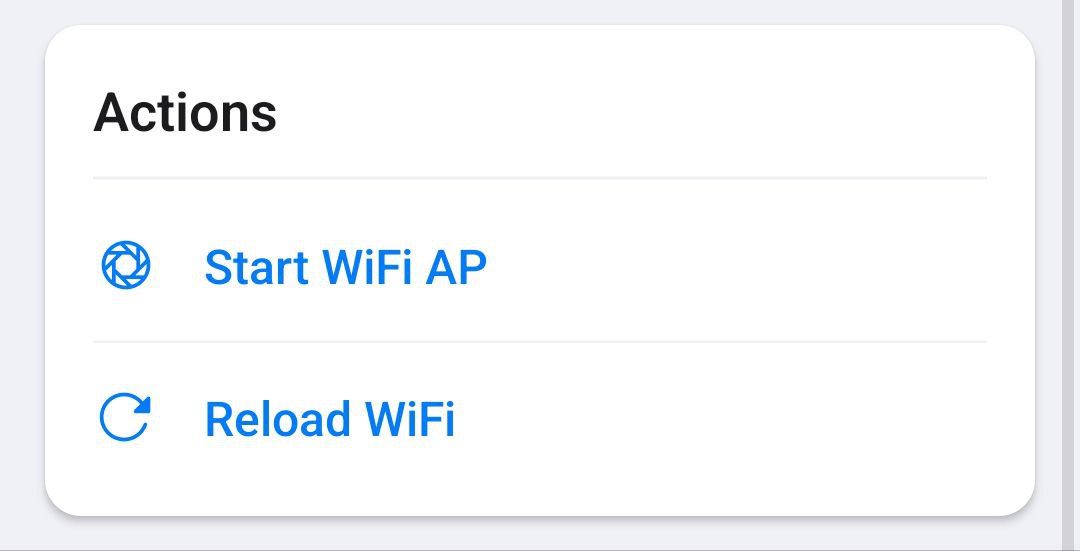

Actions
This section provides remote-control actions for your TNC.
- Enable WiFi AP: Allows you to remotely turn on the device’s WiFi Access Point (AP) mode.
- Reload WiFi: A button to restart the WiFi module on the TNC (e.g., if it was disabled and you want to re-enable it without a full reboot).
